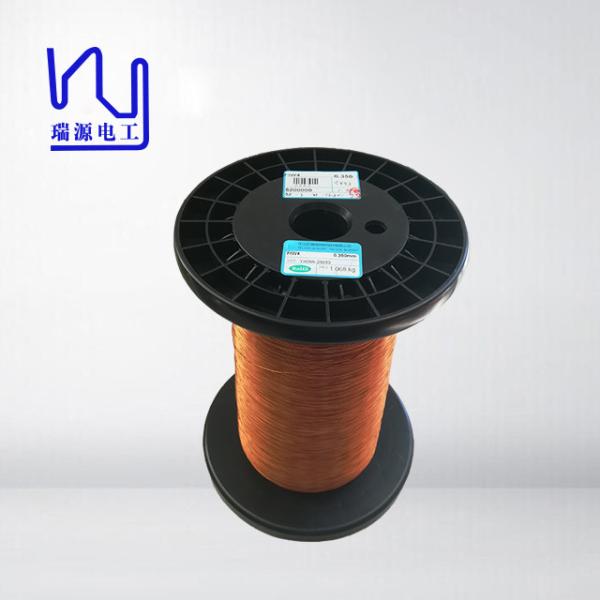

High Voltage Class 180 Fully Insulated Copper Wire FIW6 Wire 0.4mm

Brand Name : Ruiyuan

Model Number : 0.4mm

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 10kg

Price : Negotiation

Payment Terms : Negotiation

Supply Ability : 10Ton/week

Delivery Time : 2-15 days

Packaging Details : Carton

Product Name : FIW6 Wire 0.4mm High voltage Class 180 Fully Insulated Copper Wire

Thermal rating : 180

Diameter : 0.4mm

Conductor material : Copper

Key word : FIW6 Wire 0.4mm High voltage Class 180 Fully Insulated Copper Wire

Contact Now

FIW6 Wire 0.4mm High voltage Class 180 Fully Insulated Copper Wire

In high voltage transformers, Fully Insulated Wire (FIW) is usually used to wind the windings.

The benefits of applying FIW include excellent insulation properties, high temperature resistance, and stability against high voltages and electromagnetic fields. These properties make FIW an excellent choice for insulation materials used in high-voltage transformers.

In addition, the design of FIW can also effectively reduce current loss and improve energy transmission efficiency, which is crucial for high-voltage transformers. FIW also helps reduce the size and weight of insulation systems while improving system reliability and durability.

Product

FIW4 Wire 0.3mm Fully Insulated Wire Copper Wire

Key word

FIW4 Wire 0.3mm Fully Insulated Wire Copper Wire

Nom.Diameter(mm) Min. Breakdown voltage (V) 20℃
FIW3 FIW4 FIW5 FIW6 FIW7 FIW8
0.100 2106 2673 3969 5265 6561 7857
0.120 2280 2964 4332 5700 7068 8436
0.140 2432 3192 4712 6232 7752 9272
0.160 2660 3496 5168 6840 8512 10184
0.180 2888 3800 5624 7448 9272 11096
0.200 3040 4028 5928 7828 9728 11628
0.250 3648 4788 7068 9348 11628 13908
0.300 4028 5320 7676 10032 12388 14744
0.400 4200 5530 7700 9870 12040 14210
0.450 4480 5880 8050 10220 12390 14560
0.475 4690 6160 9030 11900 14770 17640
0.500 4690 6160 9030 11900 14770 -
0.560 3763 4982 7155 9328 11501 -
0.600 3975 5247 7420 9593 11766 -
0.710 4240 5565 7738 9911 12084 -
