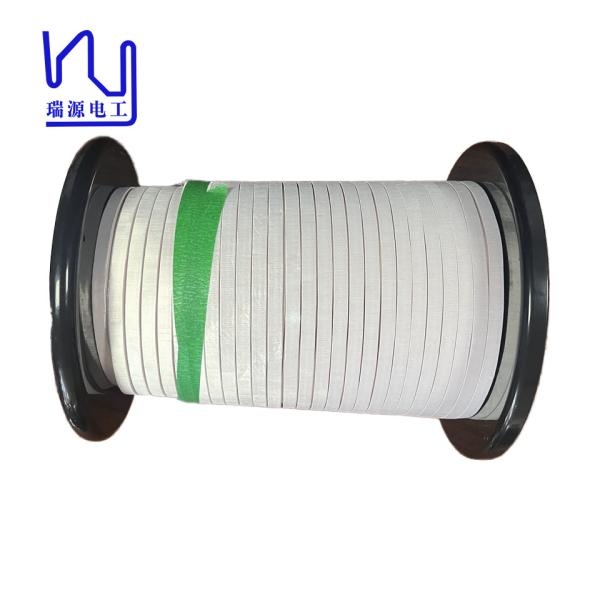

Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer

Name: Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer
Brand: Ruiyuan
Price: 1 USD

Brand Name : Ruiyuan

Model Number : USTCF litz wire

Certification : UL/ISO9001/ISO14001/RoHS/Reach

Place of Origin : China

MOQ : 20kg

Price : Negotiation

Payment Terms : TT/Paypal

Supply Ability : 100kg/week

Delivery Time : 7 days

Packaging Details : Carton

Single Wire : 0.08mm

Number Of Strands : 3000

Jacket : Nylon

Color : Natural

Conductor Material : Silver/Nylon

Key word : Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer

Product name : Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer

Contact Now

Custom Flat 3000 Strands Silk Covered Litz Wire For Transformer

What sets this flat nylon served litz wire apart from regular litz wire is its unique flat design. Unlike ordinary round nylon covered litz wire, this flat wire has a significant ratio, with a width of 9.4 mm and a thickness of 3.4 mm. This structure cannot be achieved through extrusion methods. Instead, the manufacturing process involves carefully arranging multiple strands of stranded wire and wrapping them with protective nylon yarn. This careful construction ensures that the internal enameled wire remains intact, allowing for optimal conductivity and performance in demanding environments.

Outgoing test of 0.08x1000 flat nylon served litz wrie
Spec: 2USTC-F	Model:0.08x1000x3(9.4*3.4)
Item	Tech requirement	Test value
Single wire diameter mm	0.087-0.103	0.089-0.091
Conductor diameter mm	0.08(＋0.003-0.004)	0.076-0.079
Width mm	/	8.85-9.05
Thickness mm	/	3.21-3.40
Resistance Ω/m	≤0.001258	0.001221
Breakdown voltage V	≥950	1100
Pinch	Parallel	Parallel
No. Of strand	3000	3000
